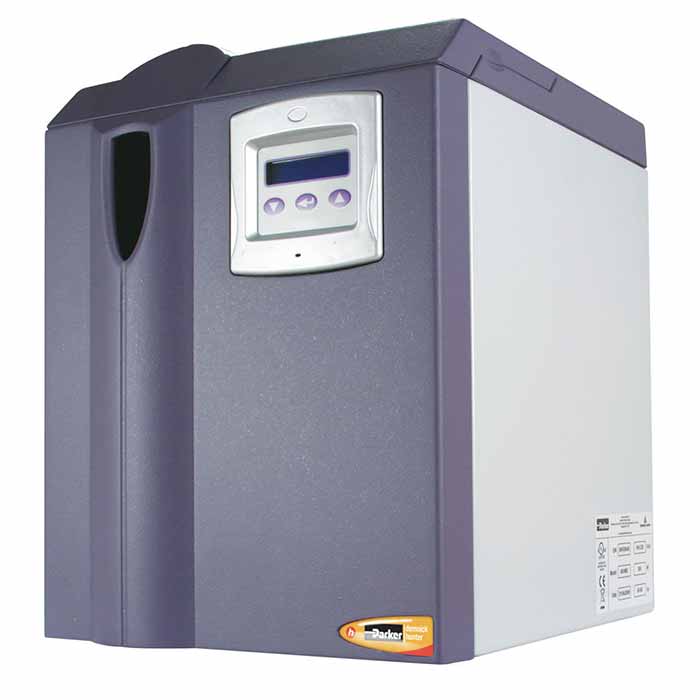

HYDROGEN GENERATORS FOR GC FUEL GAS APPLICATIONS H Purity Series

    Utilising field proven PEM cell technology, hydrogen is produced on demand from deionised water and electricity, at low pressure and with minimal stored volume. Innovative control software allows unrivalled operational safety and reliability. The H generators ideally supply fuel gas to all known GC combustion detectors used in today’s laboratory workflows. Three models operate at flow rates; 160 ml/min, 250 ml/min and 500 ml/min.

    Specification :

    GAS GENERATED Hydrogen

    GAS PURITY >99.9995

    MAXIMUM OPERATING TEMPERATURE (C) 40

    MAXIMUM OPERATING TEMPERATURE (F) 104

    MINIMUM OPERATING TEMPERATURE (C) 5

    MINIMUM OPERATING TEMPERATURE (F) 41

    MAXIMUM OUTLET PRESSURE (BARG) 6.89

    MAXIMUM OUTLET PRESSURE (PSIG) 100

    WATER CONSUMPTION 1.25 l/week to 4 l/week

    WATER QUALITY Deionised. ASTM II, >1MΩ, <1Ωs, filtered to <100Ωm ELECTRICAL REQUIREMENTS 90 - 264V 50/60Hz

    OUTLET PORT SIZE (INCH) 1/8" Compression Fitting

    HEIGHT (MM) 456  HEIGHT (INCH) 18    WIDTH (MM) 342     WIDTH (INCH) 14 DEPTH (MM) 437   DEPTH (INCH) 437

    WEIGHT (KG) 23 (full of water) WEIGHT (LBS) 51 (full of water)

    PREVENTIVE MAINTENANCE KIT 6 months: 604970600 24 months: 604970532
